Intake Manifold Plenum Volume: How Runner Length Affects Torque and Peak HP

When it comes to maximizing engine performance, few components have as much influence over your power band as the intake manifold. The design of your plenum and runner length directly shapes where your engine makes torque and where it peaks in horsepower. Understanding these dynamics helps you choose the right manifold for your driving style and goals.

The Physics of Helmholtz Resonance in Air Intake Design

Your intake manifold isn't just a passive tube delivering air to the cylinders. It's a tuned acoustic system that uses resonance to amplify air velocity at specific engine speeds. This phenomenon is called Helmholtz resonance, and it's the secret behind why some manifolds excel at low RPM while others dominate at the top end.

When air travels through the runners and plenum, it creates pressure waves that bounce back and forth. At certain engine speeds, these waves align perfectly, creating a supercharging effect that rams extra air into the cylinders without any mechanical compressor. The frequency of this resonance depends on runner length, plenum volume, and intake valve timing.

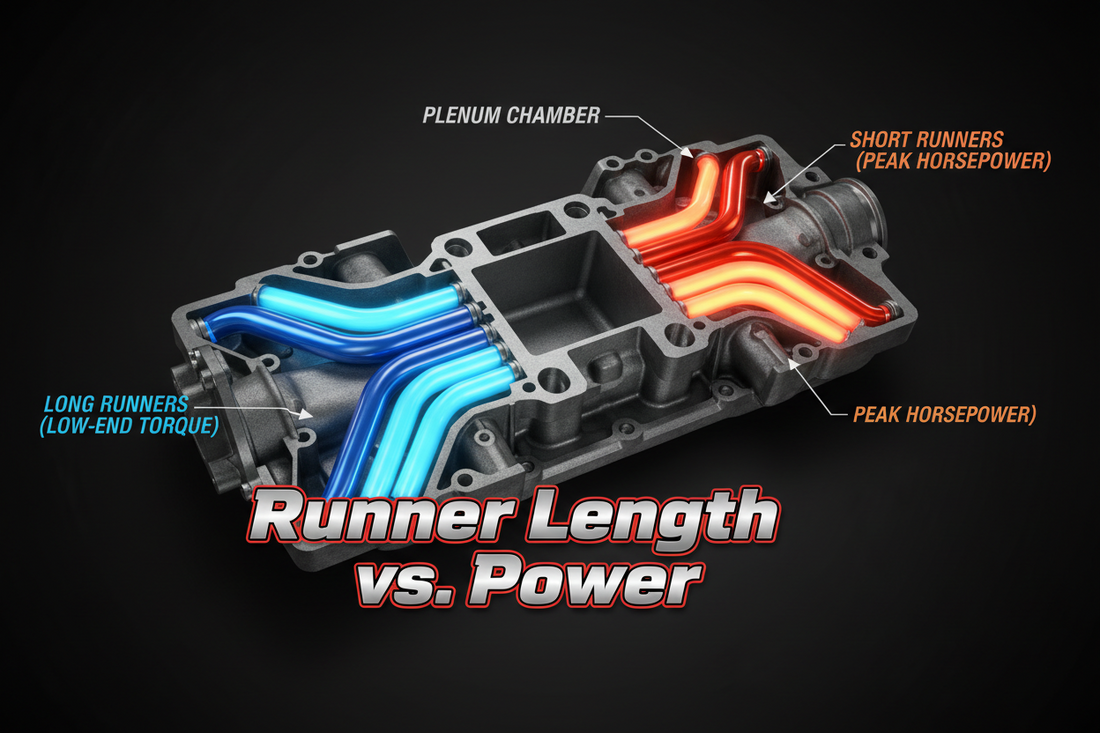

Longer runners create resonance peaks at lower RPMs, while shorter runners shift that peak toward higher engine speeds. This is why manifold selection is never one-size-fits-all—your choice depends entirely on where you want maximum power.

Short-Runner vs. Long-Runner Manifolds for Street & Strip

Long-Runner Manifolds are the choice for street engines and low-end torque. By extending the distance air travels before reaching the cylinder, long runners allow pressure waves to resonate at lower engine speeds. This creates a pronounced torque peak in the 2,000 to 4,500 RPM range, making your car feel responsive off the line and through mid-range acceleration. If you spend most of your time cruising, merging on highways, or launching from a stop, a long-runner design rewards you with usable power where you actually drive.

Short-Runner Manifolds sacrifice low-end torque for peak horsepower at higher RPMs. By shortening the runner length, resonance peaks shift upward to 5,500 RPM and beyond. This design is favored on dedicated race engines, high-revving builds, and strip cars where you're constantly operating near redline. The trade-off is noticeable: you'll feel a flat spot in the mid-range, but the top-end power gain can be substantial.

Many performance enthusiasts split the difference with medium-length runners, which balance torque and peak power across a broader RPM range. This compromise works well for street-strip hybrids where you want both launch feel and top-end capability.

Plenum Volume and Its Impact on Power Delivery

The plenum—the chamber where all runners converge—acts as an air reservoir. A larger plenum volume smooths out the pressure pulses between cylinders and extends the RPM range over which resonance is effective. Smaller plenums create sharper, more aggressive resonance peaks but over a narrower band.

For street applications, a larger plenum provides more forgiving power delivery and better throttle response across a wider range. For racing, a smaller, more compact plenum concentrates power in a tight RPM window, which is exactly what you want if you're optimizing for a specific track or strip condition.

Sheet Metal vs. Cast Aluminum vs. Carbon Fiber Intakes

Cast Aluminum Manifolds are the industry standard. They offer excellent flow characteristics, superior heat dissipation, and proven reliability. Cast designs allow manufacturers to create complex internal passages and optimized runner geometries that would be difficult or impossible to achieve with other methods. They're durable, affordable, and available for virtually every engine platform. For most builds, cast aluminum is the smart choice.

Sheet Metal Manifolds are custom-fabricated options that give you complete control over runner length, diameter, and plenum design. Welded steel or aluminum construction allows builders to dial in exact specifications for their specific engine combination and power goals. Sheet metal manifolds are lighter than cast units and can be optimized for maximum flow. The downside is cost and lead time—custom fabrication isn't cheap, and you need to know exactly what you're building before you order.

Carbon Fiber Intakes represent the cutting edge of intake technology. They're the lightest option available, reducing underhood weight and improving weight distribution. Carbon fiber also provides superior thermal properties, keeping intake charge temperatures lower than aluminum or steel. However, carbon fiber manifolds come at a premium price and are typically reserved for high-end builds where every tenth of a pound and every degree of temperature matters.

Choosing the Right Manifold for Your Build

Start by defining your goals. Are you building a street cruiser that needs responsive low-end torque? A long-runner cast aluminum manifold is your answer. Chasing quarter-mile times? A short-runner design with a compact plenum will concentrate power where you need it. Building a no-compromise race engine with unlimited budget? Carbon fiber with custom runner geometry gives you the edge.

Consider your engine's displacement, cam profile, and target RPM range. A big-displacement engine with a mild cam thrives on long runners, while a small-displacement, high-revving engine benefits from shorter runners. Your cam's intake valve opening and closing points directly influence which RPM range benefits most from resonance tuning.

Don't overlook fitment and clearance. Some manifold designs require custom headers, fuel rail relocation, or alternator repositioning. Factor installation complexity and any modifications required into your decision.

The intake manifold is one of the most underrated performance upgrades available. By understanding how runner length, plenum volume, and material choice affect your power band, you can make an informed decision that transforms how your engine performs. Whether you're optimizing for street manners or strip dominance, the right manifold design puts power exactly where you want it.
